ILO M 2-125 Repair Manual Assembly Instructions Workshop Manual Engine
Image may differ in color or layout
Item Number:
WK-0107
€15
Only the discounted shipping costs will be charged for this item.
In stock and ready for shipping
- Condition:
- New
- Brand:
- ILO
- Dimensions:
- DIN A5
- Pages:
- 36 pages
- Language:
- German
Description
Assembly instructions for ILO engine M 2-125 (2-cylinder, 2-stroke, 250 ccm).

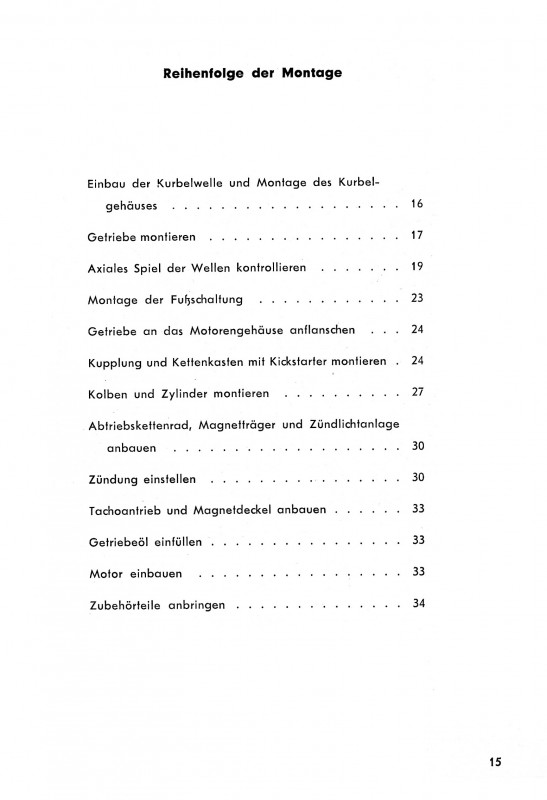

Content
Sequence of assembly:
- Installation of the crankshaft and assembly of the crankcase
- Gearbox assembly
- Check the axial play of the shafts
- Footswitch assembly
- Flange the gearbox to the motor housing
- Mount clutch and chain box with kickstarter
- Mount piston and cylinder
- Mount output sprocket, magnet carrier and ignition light system
- Adjust ignition
- Mount speedometer drive and magnetic cover
- Fill in gear oil
- Installing the engine
- Attach accessories
Content
Sequence of assembly:
- Installation of the crankshaft and assembly of the crankcase
- Gearbox assembly
- Check the axial play of the shafts
- Footswitch assembly
- Flange the gearbox to the motor housing
- Mount clutch and chain box with kickstarter
- Mount piston and cylinder
- Mount output sprocket, magnet carrier and ignition light system
- Adjust ignition
- Mount speedometer drive and magnetic cover
- Fill in gear oil
- Installing the engine
- Attach accessories
You will receive a good quality bound book or brochure by postNo PDF, no CD and no loose sheet collection!
